QSC has released a variety of new products in the past month, including the new NV-32-H (Core Capable), Q-SYS Core Nano, and Q-SYS Core 8 Flex, along with series line extensions for the AcousticDesign™ Series and Attero Tech by QSC Series.
Product Overviews
NV-32-H (Core Capable)
The NV Series NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Ecosystem. NV-32-H (Core Capable) offers two distinct operating modes to choose between, based on the needs of the application.
‘Core Mode’ toggles the device into a consolidated AV processor, control engine, and video switch, specifically intended to support video collaboration in smaller-to-medium sized meeting rooms and classrooms.
Key Features (Core Mode):
Full-featured DSP
Integrated 3 x 2 HDMI video switch
32 x 32 network audio channels + onboard audio I/O via HDMI, USB, and 3.5 mm
8x AEC (acoustic echo cancellation) processors
1x VoIP softphone instance
‘Peripheral Mode’ allows multi-stream video encoding or decoding for network-based HDMI video distribution, to be used with a separate Q-SYS Core processor in meeting room scenarios.
Key Features (Peripheral Mode):
Native HDMI video and audio distribution for the Q-SYS Ecosystem
Q-SYS Shift™ adaptive video compression codec
Software-configurable as an encoder or decoder
Core 8 Flex and Core Nano
Released earlier in the Fall of 2020, both of these new Core processors include:
Full-featured audio, video & control processing power, and extensibility you have come to expect from the Q-SYS Ecosystem
Optimized for QSC Conferencing needs allowing for full room web conference integration, particularly for high value, specialty rooms
Same software (Q-SYS Designer Software) for the entire Ecosystem; scale-up or scale-out with ease
The Core 8 Flex: ideal for single room, distributed processing with analog and networked endpoints.
The Core Nano: ideal for multi-room with centralized processing and network endpoints.
Watch the official QSC product introduction for these two new Core processors by following this link!
AcousticDesign™ Series AD-S5T Surface-Mount Loudspeaker
The newest addition to the QSC AcousticDesign Series, the AD-S5T is a two-way, surface-mount loudspeaker.
5.25-inch woofer, 1-inch tweeter
115° conical DMT coverage
112 dB maximum peak SPL (8 Ω bypass)
DMT™ (Directivity Matched Transition) ensures a smooth, uniform frequency response over the coverage area.
Shared sonic characteristics within the AcousticDesign Series allows you to mix-and-match enclosure types within the same installation.

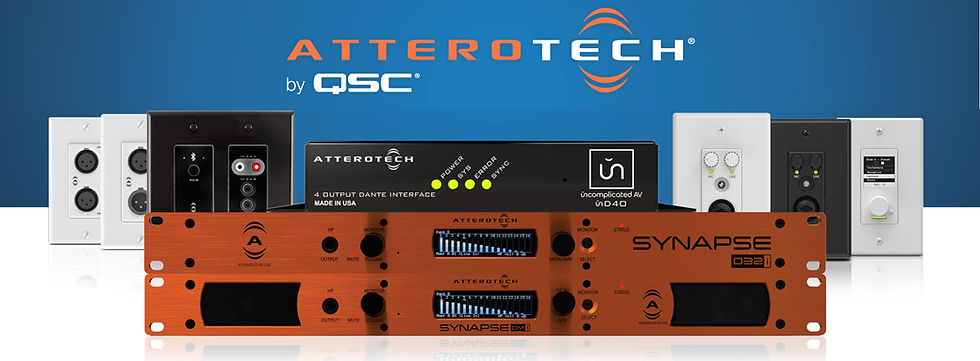

Attero Tech by QSC Updates
Please see below for new updates to the Attero Tech by QSC series.
The Attero Tech by QSC Axon D2i is a single-gang, Dante/AES67 network audio I/O wall plate for network AV systems, such as the Q-SYS Ecosystem. With two balanced mic/line inputs in a cost-effective form factor, it provides easy integration of analog devices into a wide range of network audio applications.
The Attero Tech by QSC Axon DBU is a surface-mount, Dante/AES67 network audio interface offering bi-directional USB / Bluetooth integration into network AV systems, such as the Q-SYS Ecosystem.
The Attero Tech by QSC Axiom AXPio audio expander pairs with up to two Axiom wall plates to provide a simple, flexible, and installation-friendly solution for point-to-point analog audio extension over CAT-5/6. It features two Flex I/O channels along with RS-232 connectivity for control integration into network AV systems.
Axiom USB1 bi-directional USB audio wall plate
The Attero Tech by QSC Axiom USB1 lets users connect a PC or music content server to interface USB audio content into the room’s audio system. Also allows users to connect their laptops to integrate the room’s audio into their web conferencing application (Microsoft Teams, Zoom, etc.).
The Attero Tech by QSC Axiom BT1 features two-way Bluetooth connectivity and a 3.5 mm stereo audio connector, allowing users to easily connect consumer-grade devices to the room’s audio system for music playback or Bluetooth conference call bridging.
The Attero Tech by QSC Axon DTH1620 is a multi-channel, low-power (16-channel x 20 watts) Dante/AES67 network amplifier, designed for themed entertainment usage and other specialized audio applications.
As always, please don't hesitate to reach out to us with any questions or to request a demo!
